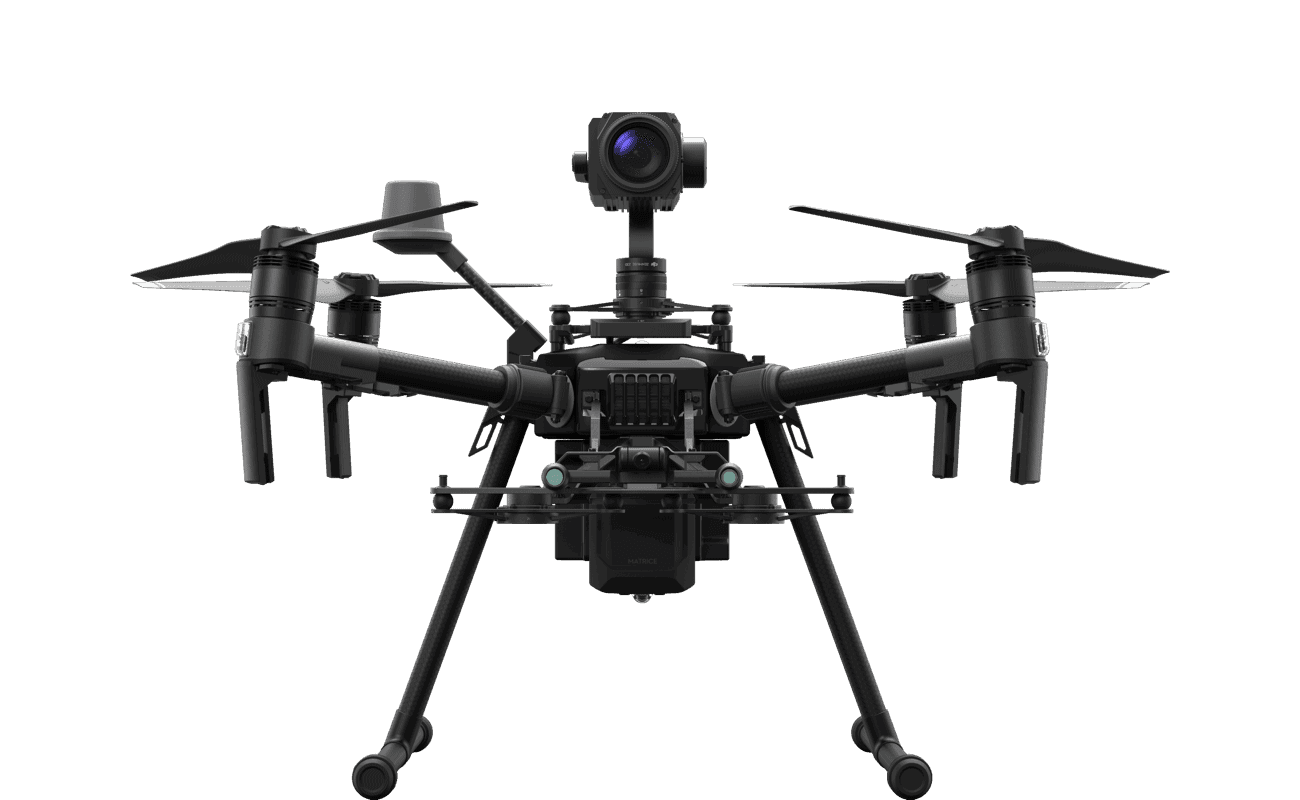

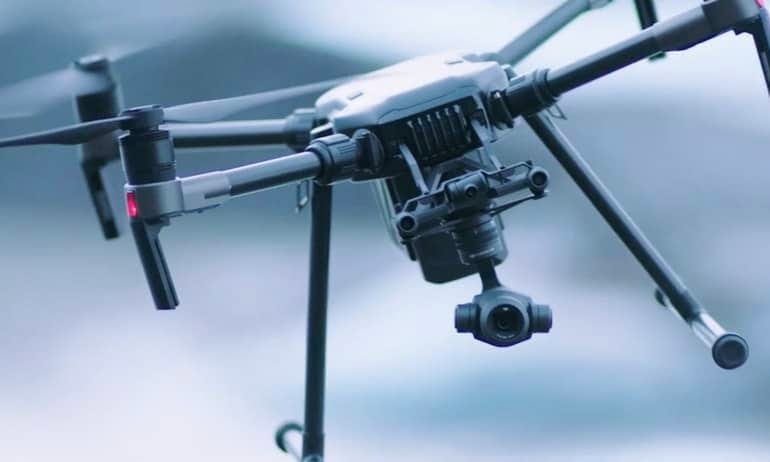

DJI MATRICE 200 SERIES Drone
POWER LINE INSPECTION
With improved reliability and precisions, inspectors areempowered to visualize extensive powerline networks withunparalleled detail despite adverse conditions.
OUR SOLUTION:
M210 RTK
Z30
XT
search and rescue
Equipped with both an aerial zoom and thermal camera, first responders can now quickly locate missing people in remote areas and plan the safest approach path.
OUR SOLUTION:
M210
Z30
XT
WIND TURBINE INSPECTION
With improved flight stability in windy conditionsand a top-mounted gimbal, turbine inspectorscan spot millimeter-sized damage alongall parts of a turbine’s propellers.
OUR SOLUTION:
M210
Z30

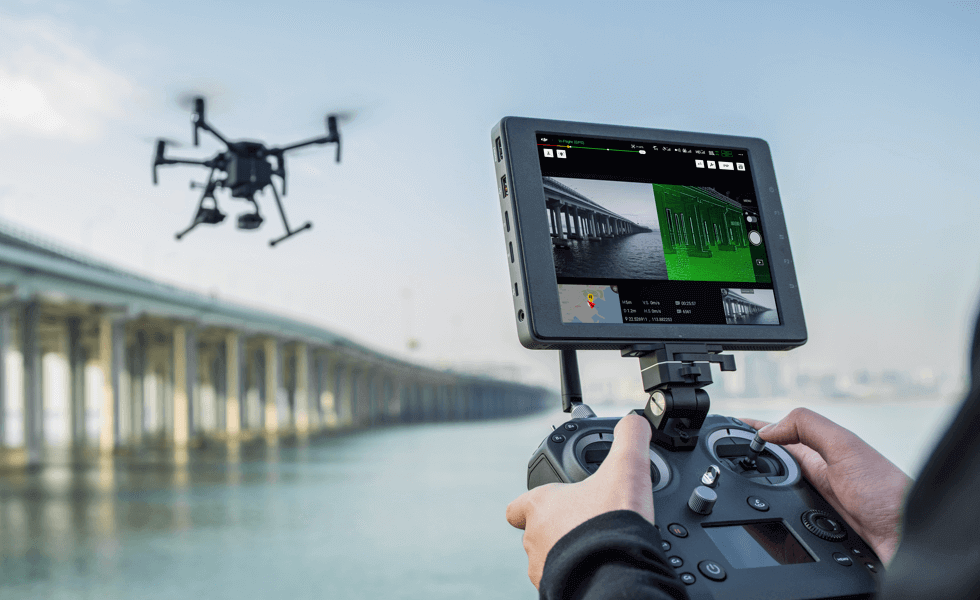

bridge inspection
With a top-mounted gimbal pilots can fully inspect bridges, allowing teams to adequately plan maintenance schedules for improved public safety and minimized costs.
OUR SOLUTION:
M210
Z30
PRECISION AGRICULTURE
Combine visual and multispectral cameras for quicker crop scouting.
M210 + X4S + XT
SOLAR PANEL INSPECTIONS
Inspect panels with visual and thermal imagery to detect defects.
M210 + X4S + XT
FIREFIGHTING
Get a complete view of a dangerous situation with visual and thermal cameras.
M210 + Z30 + XT
TELECOM INSPECTIONS
Rapidly detect millimeter-sized damages while conducting routine inspections.
M210 RTK + Z30 + X4S
CONSTRUCTION SITE MAPPING
Quickly obtain data to generate accurate 3D maps for progress tracking.
M210 + X4S
OFFSHORE RIG INSPECTIONS
View inspections of offshore assets remotely to ensure site safety.
M210 + X4S
Specification M200 Aircraft
| Model | M200 |
|---|---|
| Package Dimensions | 31.1×15.4×11.4inch (790×390×290mm) |
| Dimensions (unfolded) | 34.9×34.6×14.9 inch (887×880×378 mm) |
| Dimensions (folded) | 28.2×8.7×9.3 inch (716×220×236 mm) |
| Folding Method | Folded Inward |
| Diagonal Wheelbase | 25.3 inch (643 mm) |
| Number of Batteries | 2 |
| Weight (TB50) | Approx. 3.80 kg |
| Weight (TB55) | Approx. 4.53 kg |
| Max Takeoff Weight | 6.14KG |
| Max Payload (2 TB50) | Approx.2.34kg (with two standard batteries ) |
| Max Payload (2 TB55) | Approx.1.61kg (with two standard batteries ) |
| Hovering Accuracy (P-mode with GPS) | Vertical: ±1.64 feet (0.5m) or ±0.33 feet (0.1m, Downward Vision System enabled) Horizontal: ±4.92 feet (1.5m) or ±0.98 feet (0.3m.Downward Vision System enabled) |
| Max Angular Velocity | Pitch: 300° /s；Yaw: 150° /s |
| Max Pitch Angle | P Mode: 30°（Forward Vision System enabled: 25°）； A Mode: 35°；S Mode: 35° |
| Max Ascent Speed | 16.4 ft/s (5 m/s) |
| Max Descent Speed | Vertical: 9.8 ft/s (3 m/s) |
| Max Speed | S Mode: 51.4mph (82.8kph) P Mode: 38mph (61.2kph) A Mode: 51.4mph (82.8kph) |
| Max Service Ceiling Above Sea Level | 1.86 mi (3000 m) |
| Max Wind Resistance | 39.4 ft/s (12 m/s) |
| Max Flight Time(No Payload, with TB50) | 27min |
| Max Flight Time(No Payload, with TB55) | 38min |
| Max Flight Time(Full Payload, with TB50) | 13min |
| Max Flight Time(Full Payload, with TB55) | 24min |
| Motor Model | DJI 3515 |
| Propeller Model | 1760S |
| Operating Temperature | -4° to 113° F (-20° to 45° C) |
| IP Rating | IP43 |
Gimbal Installation
| Downward Gimbal Mount | Supported |
|---|---|
| Upward Gimbal Mount | Not Supported |
| Downward Dual Gimbal | Not Supported |
Battery (Standard)
| Model | TB50 |
|---|---|
| Capacity | 4280 mAh |
| Voltage | 22.8V |
| Battery Type | LiPo 6S |
| Energy | 97.58 Wh |
| Net Weight | Approx. 520g |
| Operating Temperature | -4° to 113° F (-20° to 45° C) |
| Storage Temperature | Less than 3 months: -4° to 113° F (-20° to 45° C) More than 3 months: 72° to 82° F (22° to 28° C) |
| Charging Temperature | 41° to 104° F (5° to 40° C) |
| Max Charging Power | 180 W |
Charger
| Model | IN2C180 |
|---|---|
| Voltage | 26.1 V |
| Rated Power | 180 W |
Forward Vision System
| Obstacle Sensing Range | 2.3-98.4 feet (0.7-30 m) |
|---|---|
| FOV | Horizontal 60°，Vertical 54° |
| Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) |
Downward Vision System
| Velocity Range | <32.8 ft/s (10 m/s) at the height of 6.56 feet (2 m) |
|---|---|
| Altitude Range | <32.8 feet (10 m) |
| Operating Range | <32.8 feet (10 m) |
| Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) |
| Ultrasonic Sensor Operating Range | 0.33-16.4 feet (10-500 cm) |
| Ultrasonic Sensor Operating Environment | Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance) |
Gimbal
| Compatible Gimbals | Zenmuse X4S Zenmuse X5S Zenmuse Z30 Zenmuse XT Zenmuse XT2 SLANTRANGE 3PX Sentera AGX710 |
|---|
Remote Controller
| Model | GL6D10A |
|---|---|
| Operating Frequency | 2.400-2.483 GHz 5.725-5.850 GHz |
| Max Transmitting Distance(unobstructed, free of interference) | 2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC) 5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC) |
| EIRP | 2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC) 5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC) |
| Video Output Ports | USB, HDMI |
| Power Supply | Built-in battery |
| Charging | DJI charger |
| Dual User Capability | Host-and-Slave connection |
| Mobile Device Holder | Tablet or Smart Phone |
| Max Mobile Device Width | 170 mm |
| Output Power | 9 W (Without supplying power to smart device) |
| Operating Temperature | -4° to 104° F (-20° to 40° C) |
| Storage Temperature | Less than 3 months: -4° to 113° F (-20° to 45° C) More than 3 months: 72° to 82° F (22° to 28° C) |
| Charging Temperature | 32° to 104° F (0° to 40° C) |
| Battery | 6000mAh 2S LiPo |
| USB Supply Power | iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max) |
Battery (Optional)
| Model | TB55 |
|---|---|
| Capacity | 7660 mAh |
| Voltage | 22.8V |
| Battery Type | LiPo 6S |
| Energy | 174.6Wh |
| Net Weight | Approx. 885g |
| Operating Temperature | -4° to 113° F (-20° to 45° C) |
| Storage Temperature | Less than 3 months: -20° C to 45° C More than 3 months: 22° C to 28° C |
| Charging Temperature | 41° to 104° F (5° to 40° C) |
| Max Charging Power | 174.6 W |
DJI GO 4 APP
| Name | DJI GO 4 |
|---|---|
| Mobile Device System Requirements | iOS 9.0 or later,Android 4.4.0 or later |
| Supported Mobile Devices | iOS:iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 7, iPhone 7 Plus. Android:Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Huawei Mate 8, LG V20, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1. *Support for additional devices available as testing and development continues. |
Upward Infrared Sensor
| Obstacle Sensing Range | 0-16.4 feet (0-5 m) |
|---|---|
| FOV | ±5° |
| Operating Environment | Large-sized object with diffuse relecting surface or high relective rate (>10%） |
