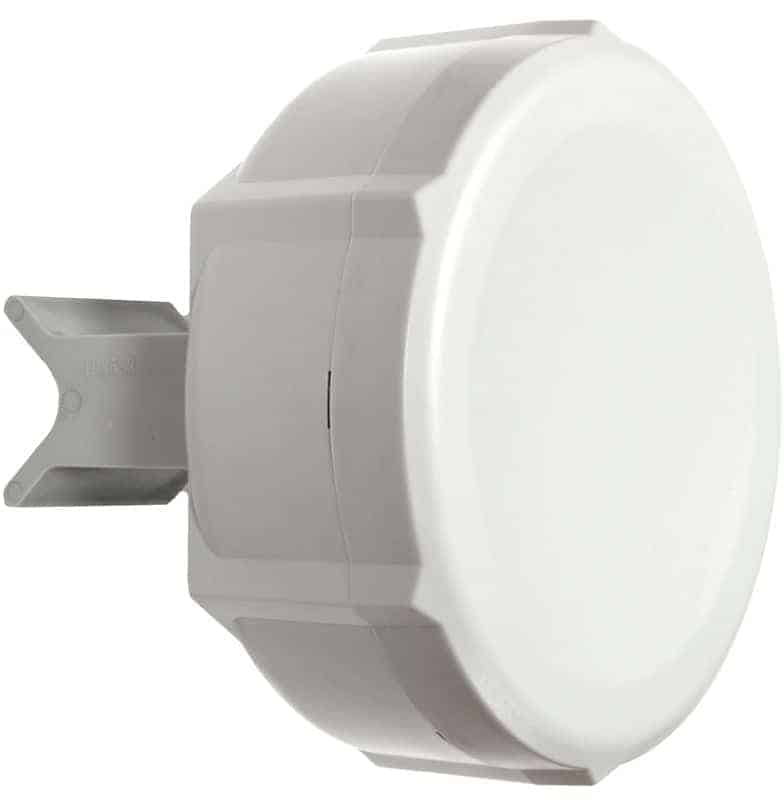

MIKROTIK RBSXT Lite 5 ac
SXT Lite5 ac16dBi integrated CPE/Backbone, 5Ghz dual chain with 802.11ac support, 650MHz CPU
The SXT Lite5 ac is a new low cost device in our 802.11ac product lineup.
Unit is equipped with powerful 650MHz CPU, 64MB RAM, 10/100Mbps Ethernet port and has 5GHz 16dBi 28 degree beamwidth antenna.
The SXT Lite5 ac supports 256-QAM modulation and 80MHz channels, so you get more speed per same frequency width as 802.11 devices. It also supports 802.11a/n, Nv2, Nstreme mode and is compatible with all legacy RouterBOARD devices. New industrial wireless chip QCA-9892 provides support for 5/10 MHz channel width for 802.11an standard
Specification :
| Details | |
|---|---|
| Product code | RBSXT5HacD2n |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 140x140x56mm |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 8 W |
| Max power consumption without attachments | 8W |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 150 Mbit/s |
| Wireless 2.4 GHz number of chains | 1 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 16 |
| Wireless 5 GHz chip model | QCA9892 |
| Wi-Fi generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 17 | -93 |
| 11MBit/s | 17 | -86 |
| 6MBit/s | 17 | -90 |
| 54MBit/s | 15 | -71 |
| MCS0 | 17 | -90 |
| MCS7 | 13 | -68 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 29 | -96 |
| 54MBit/s | 26 | -81 |
| MCS0 | 29 | -96 |
| MCS7 | 25 | -77 |
| MCS9 | 22 |
