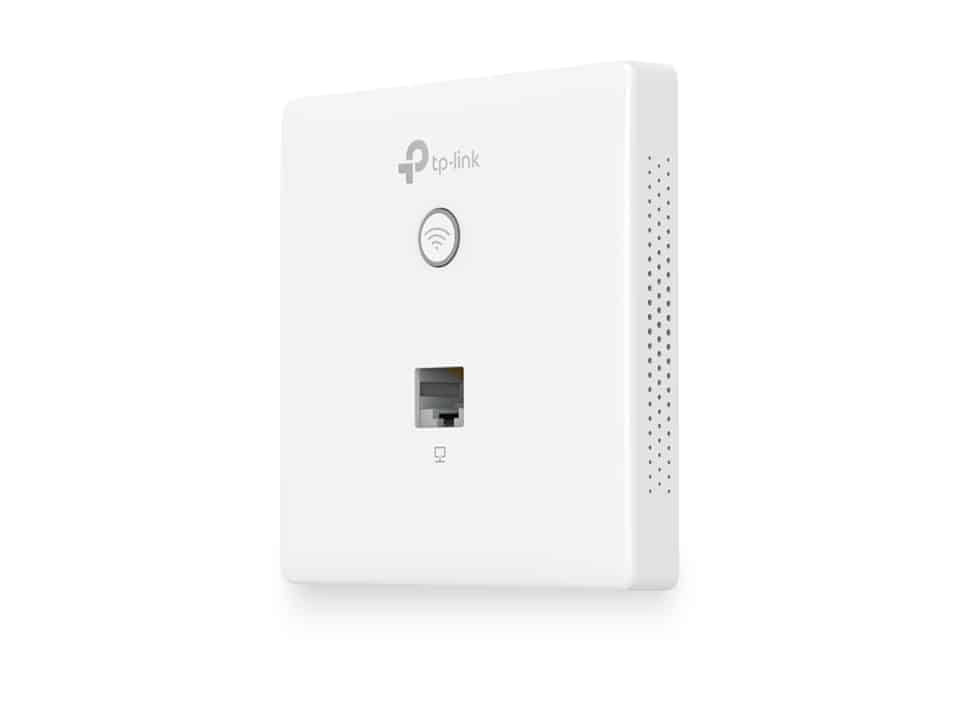

TP-Link 300Mbps Wireless N Wall-Plate Access Point EAP115-Wall
- Easy-mount construction allows installation into any standard EU-type data wall-box
- Compact, low-profile design fits discreetly with any existing interior style
- Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
- Support Power over Ethernet (802.3af) for convenient and affordable installation
- Enterprise class Wi-Fi security helps to decrease network security threats
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- Supports management vlan for an enhanced network management
Installation Made Easy
- Detach the faceplate of the junction box* with a screwdriver.
- Remove the faceplate of the EAP.

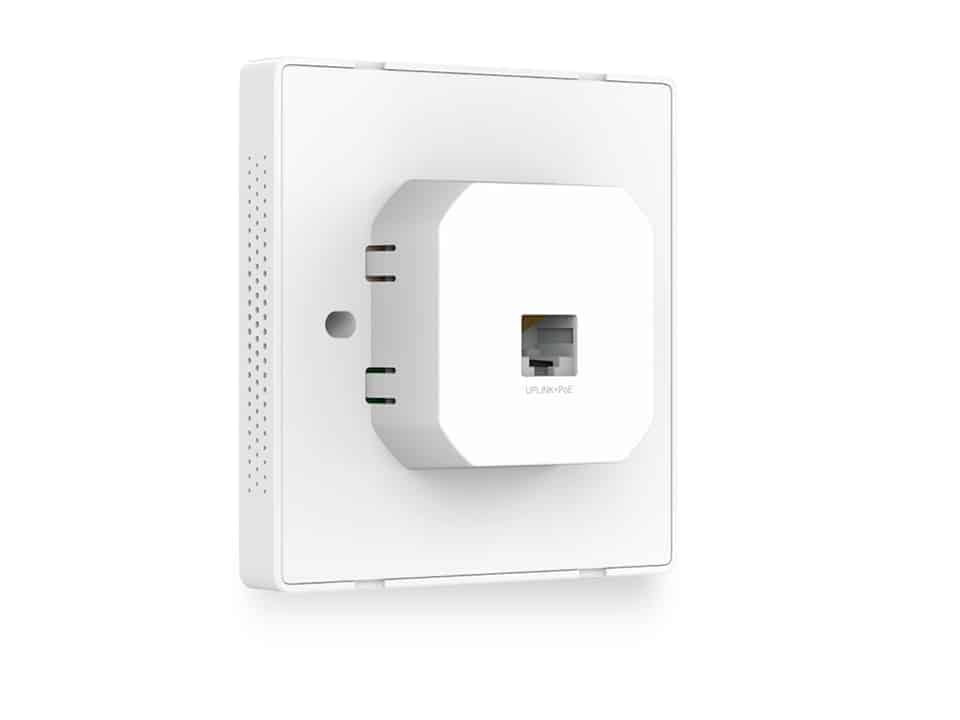

- Connect an in-wall Ethernet cable to the Uplink+POE port.
- Secure the access point to the wall using the nails provided.
- Press the faceplate back into position.
*Fit for flowing two kinds of wall junction box
- Â 86mm wall junction box
- Â Standard EU wall junction
Perfectly Formed
The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.
11 mm
Effortless Deployment
With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.
- Â Instant Deployment
- Â PoE 802.3af
Complete Wireless Coverage

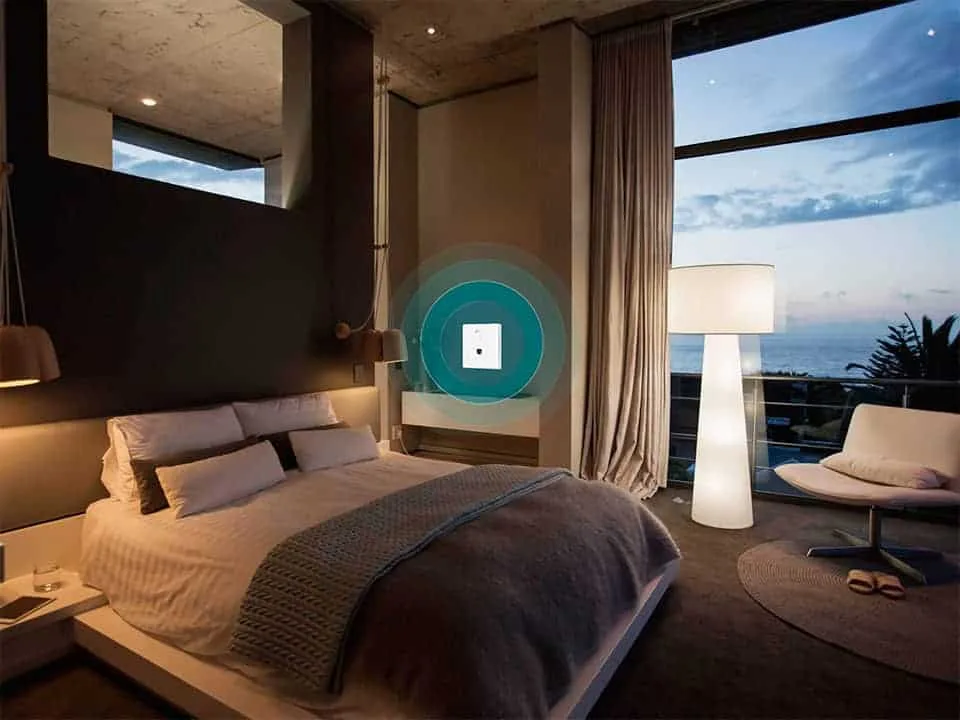

An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.
  Controller Software
Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. TP-Link’s free Auranet Controller Software provides an intuitive management interface with no special training required. Wi-Fi management has never been so simple or cost-effective.
Customized Guest Authentication with Captive Portal
Captive portal provides a convenient method of authentication for Wi-Fi guests. Choose from a range of authentication options and create a unique authentication page to advertise your business to users.
Specification :
300 Mbps Wall-Plate Wi-Fi Access Point
PORT: Uplink: 1× 10/100 Mbps RJ45 Port, Downlink: 1× 10/100 Mbps RJ45 Port
SPEED: 300 Mbps at 2.4 GHz
FEATURE: Compatible with EU Standard Junction Box, 802.3af PoE, 2× Internal Antennas, Load Balance, Centralized Management by Omada SDN Controller, Omada App, 86.8 × 86.8 × 30.2 mm
